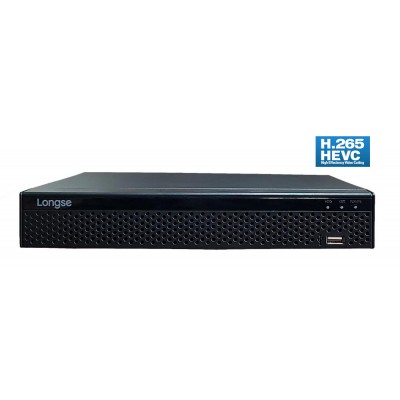

"LONGSE XVR Υβριδικό καταγραφικό
LONGSE XVR Υβριδικό καταγραφικό, H265+HD, DVR, 4 έως 16 κανάλια IP
Τεχνική Υποστήριξη:
Η Data Media παρέχει online τεχνική υποστήριξη για το συγκεκριμένο προϊόν, στο τηλέφωνο 2394020204 (εσωτερικό 331)
LONGSE XVR Υβριδικό καταγραφικό Η265+ XVRDA2004HD με νέο ταχύτερο επεξεργαστή HI3520DV400 και ανανεωμένο case μεγαλύτερης συμπίεσης Η265+.
Συμβατές εφαρμογές:
https://play.google.com/store/apps/details?id=com.gzch.lsplat.bitdog&hl=el
http://www.herospeed.net/en/index.php?m=content&c=index&a=lists&catid=10
Οδηγίες - Manual: Οδηγίες εγκατάστασης
https://www.data-media.gr/files/XVRDA2004HD.pdf
- Υβριδικό δικτυακό XVR καταγραφικό 4 CH. H.265+
- Συμβατό με τις τεχνολογίες: HD-TVI, CVI, AHD και Analogue
- Υποστηρίζει Analog: 4x(TVI/AHD: 5M; AHD/TVI/CVI: 4M; AHD/TVI: 3M; AHD/TVI/CVI: 1080P/720P; Analog: 960H)
Analog+Network: 2xAnalog(1080P)+7xnetwork(MAX 5MP)
Network: 16x5MP/4MP/3MP/1080P/960P/720P(Total incoming bandwidth ?50M)
- Ελληνικό μενού
- Διαθέτει 4x εισόδους Audio
- Εφαρμογή για Android και IOS
- Υποστηρίζει DDNS/CLOUD/P2P
- Υποστηρίζει HDD έως 6ΤΒ
- Αναπαραγωγή σε εξόδους HDMI(1080p), VGA(1080p)
Τεχνικά Χαρακτηριστικά:
Main Processor: HI3520DV400
Operating System: Embedded LINUX
Input "Normal Mode: Analog: 4x(TVI/AHD:8M; TVI/AHD: 5M; AHD/TVI/CVI: 4M; AHD/TVI: 3M; AHD/TVI/CVI: 1080P/720P; Analog: 960H) Analog+Network: 2xAnalog(1080P)+7xnetwork(MAX 5MP)
Lite Mode: Analog: 4x(AHD/TVI/CVI: 1080P/720P; Analog: 960H) Analog+Network: 2xAnalog(1080P)+7xnetwork(MAX 5MP)
Network: 12x5MP/4MP/3MP/1080P/960P/720P(Total incoming bandwidth ?48M)
Input: 4CH BNC
Signal Type: Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network
Output: 1HD,1 VGA
Input/Output: 4 Channel, RCA/1 Channel, RCA
Motion Detection: 4 Channel(max 16 Channel in pure network mode)
Trigger Events: Recording, Email, Screen tips, Buzzer, Push notifications(motion detection)
Email Alarm: Send Image to The Designated E-mail
Interface: RS485
Protocol: Pelco-D, Pelco-P
Baud Rate: 110~921600
Address: 0~255
VGA Resolution: 1920?1080P/60Hz, 1280?1024/60Hz, 1280?720/60Hz,1024?768/60Hz
HD Output: Normal Mode: Resolution:2560x1440/30Hz, 1920x1080P/60Hz, 1280x1024/60Hz, 1280x720/60Hz,1024x768/60Hz
Lite Mode: Resolution: 3840?2160/30Hz, 2560x1440/30Hz, 1920?1080P/60Hz, 1280?1024/60Hz, 1280?720/60Hz, 1024?768/60Hz
Display Split: 16 Channel/9 Channel/4 Channel / 1Channel
Privacy Masking: 3 Rectangular Zones (Each camera)
OSD: Camera title, Time, Video loss, Alarm, Motion detection, Recording
Video Compression: H.265/H.265+/H.264/H.264+
Audio Compression: G.711u
Resolution: 5MP(2592?1944),8MP_LITE(1920?2160),5MP_HALF(1296?1944),4MP(2560?1440),4MP_HALF(1280?1440),3MP(2048?1536),1080P(1920?1080),720P(1280?720),960H(P:960?576/N:960?480)
Video Quality: worst/worse/ordinary/well/best
Record Rate: Normal Mode: Analog: PAL:8MP_LITE(1920?2160 4x8fps), 5MP(2592?1944 4x6fps), 5MP_HALF(1296?1944 4x10fps),4MP(2560?1440 4x8fps),4MP_HALF(1280?1440 4x15fps),3MP(2048?1536 4x9fps),1080P(1920x1080 4x15fps),720P(1280?720 4x25fps), 960H(960?576 4x25fps) NTSC:8MP_LITE(1920?2160 4x8fps), 5MP(2592?1944 4x6fps),5MP_HALF(1296?1944 4x10fps),4MP(2560?1440 4x8fps),4MP_HALF(1280?1440 4x15fps),3MP(2048?15364x9fps),1080P(1920x1080 4x15fps),720P(1280?720 4x25fps), 960H(960?480 4x25fps)
Lite Mode: Analog: Half 1080P(960x1080 4x25fps),720P(1280?720 4x25fps), 960H(P:960?576 4x25fps/N:960?480 4x30fps)
Pure IP(H.265): PAL: 5MP 8?25fps,4MP 12x25fps,3MP 12?25fps,1080P 12?25fps,960P 12?25fps,720P 12?25fps,D1 12?25fps
NTSC: 5MP 8?30fps,4MP 12?30fps,3MP 12?30fps,1080P 12?30fps, 960P 12?30fps, 720P 12?30fps, D1 12?30fps
Record Mode: Manual\Timer\Motion Detection
Decode Capability 2CH 1080P 30fps
Sync Playback: Pure Analog: 4CH 5M 6fps, 4CH 4M 7fps, 4CH 3M 9fps, 4CH 1080p 15fps, 4CH 1080N 25fps
Mix Mode: 1CH 5M 30fps, 1CH 4M 30fps, 1CH 3M 30fps, 2CH 1080P 30fps, 3CH 1080p 15fps
Pure IPC: 1CH 5MP 30fps, 1CH 4MP 30fps, 1CH 3M 30fps, 4CH 1080P 30fps, 4CH 960P 30fps, 4CH 720P 30fps
Remote Playback: 4 Channel/1Channel
Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection
Playback Functions: Play, Pause, Stop, Fast play, Rewind, Digital Zoom, Full screen
Smart Phone Playback: 4 Channel
Backup Mode: USB Device(with fomat FAT 32 )/Network
Interface 1 RJ45 10M/100M Adaptive Ethernet Interface
Network Functions TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP
DDNS Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE
Web Browser IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)
CMS Software: Support Windows 7/ Windows 8/Windows 10
Extra Stream: CIF(1~25fps)
Smart Phone: iPhone, ipad, Android ,Android pad
Interface Type: 1 SATA Interface
Capacity: 1 SATA Hard Disk (2.5"/3.5" SATA, Up to 8TB)
Language: Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa
German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek
UTC Control: Yes
USB Interface: 2 USB 2.0 Interfaces
Power consumption: DC 12V ?6W (Without Hard Disk)
Working Environment: -10~55C/10~90%
